GENERAL SPECIFICATIONS
Standard :
Singapore Standard SS245: 2014, MS 1390 : 2010 similar to British Standard BS 7491
Part 3:1994 and BS EN 13280:2001
Materials :
Sheet Moulding Compound (SMC) consists of :
Resin – Isophthalic unsaturated polyester resin conforming to BS 3532 specification
Fiber Glass – Low alkali fibre glass conforming to JIS R3411 to R3417 or BS 3396, BS 3496 and BS 3749 specifications
Manufacturing Process :
Hot pressed SMC compression moulding
Tank Structural Support :
Tie-rod System:
External:
Hot Dipped Galvanised Steel
Internal:
SS304 Tie-rod, Optional SS316
Roof Support : PVC/ABS pipes with GRP roof panel stiffener
External Braced System :
External:
Hot Dipped Galvanished Steel
Internal
None (metal free inside, non-partitioned tank only)
Roof Support: PVC Poles with GRP roof panel stiffener
Sealant :
Non toxic PVC foam/EPDM Rubber
Bolt, Nuts, Washers :
External:
– Standard : Hot Dipped Galvanised Steel
– Optional : SS 304/316
Internal:
– Standard : SS 304 (In-contact with water)
– Optional : SS 316 (In-contact with water)
Roof :
-Standard: Hot Dipped Galvanised Steel
-Optional: SS 304/316
Ladder :
External:
– Standard : Hot Dipped Galvanised Steel, 300mm width
Internal:
– Standard : PVC or Aluminium, 300mm width
– Optional : GRP or SS 304/316, 300mm width
Water Level Indicator :
Standard : Reversed Reading Mechanical Ball Float Type (Cat & Mouse)
Optional : Direct Reading Clear Tube Type

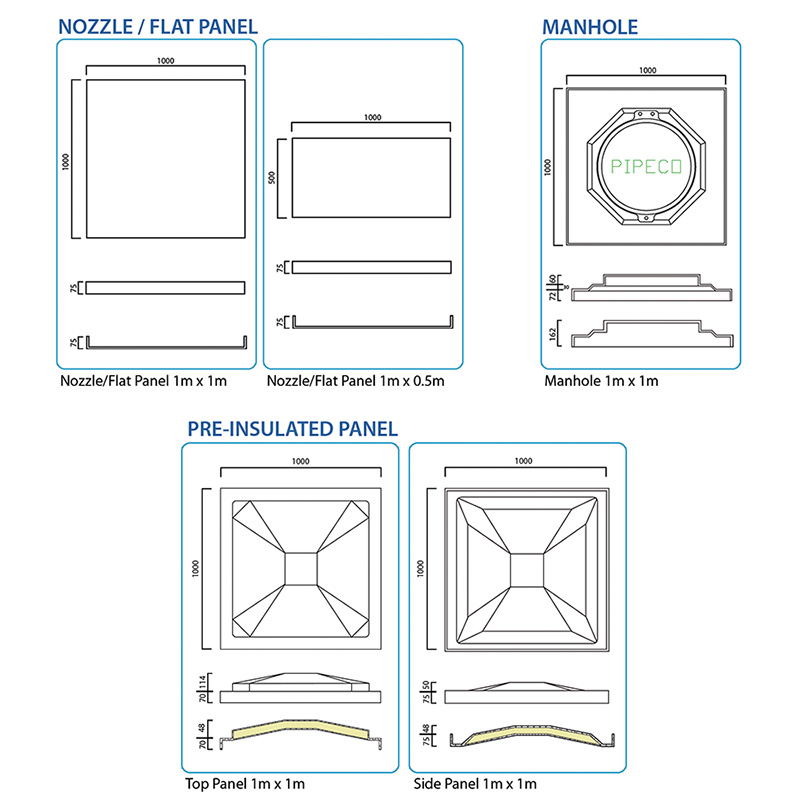

Nozzel Panel :
Pipe nozzles flange not inclusive
Flat panels will be provided on request
*Note: Specification may vary according to client’s requirement.
By encapsulating a 50mm layer of rigid polyurethane foam, PIPECO pre-insulated panel could maintain the desired water temperature stored inside the tank under extreme temperature condition. PIPECO pre-insulated panel could be selected for water storage where there is a need to stabilize the temperature against extreme heat or freezing conditions so to prevent dew formation.
Performance of Panels
| Characteristics | PIPECO GRP – Tank Panel Performance | Acceptance Criteria (SS 245:2014 Specification) |
|---|---|---|
| Tensile Strength (MN/m²) | 107 | >70 (min) |
| Bending Strength (MN/m²) | 167 | > 100 (min) |
| Elastic Modulus in Bend (MN/m²) | 11953 | > 6000 (min) |
| Glass Content (%) | 33 | > 25 (min) |
| Barcol Hardness | 59 | >30 (min) |
| Water Absorption (%) | 0.2 | 0.5 (max) |
Skid Base Specifications for GRP Sectional Water Tank
| Tank Height | Main Beam | Sub Beam | Concrete Plinth Distance |
|---|---|---|---|
| 1.0m | not provided | not provided | 1000mm c/c |
| 1.5m | Hollow Section 50mm x 50mm x 3mm | Hollow Section 50mm x 50mm x 3mm | 1000mm c/c |
| 2.0m | Hollow Section 50mm x 50mm x 3mm | Hollow Section 50mm x 50mm x 3mm | 1000mm c/c |
| 2.5m | Hollow Section 50mm x 50mm x 3mm | Hollow Section 50mm x 50mm x 3mm | 1000mm c/c |
| 3.0m | Hollow Section 50mm x 50mm x 3mm | Hollow Section 50mm x 50mm x 3mm | 1000mm c/c |
| 3.5m | Hollow Section 50mm x 50mm x 4mm | Hollow Section 50mm x 50mm x 4mm | 1000mm c/c |
| 4.0m | Hollow Section 50mm x 50mm x 4mm | Hollow Section 50mm x 50mm x 4mm | 1000mm c/c |
*c/c = centre to centre
*PIPECO reserves the right to provide alternate skid base designs
PIPECO recommends an ideal concrete plinth size of 300mm (W) x 500mm (H), with maximum variance in height of not more than 2mm
Overview of Internal Structural Support for GRP Sectional Water Rank

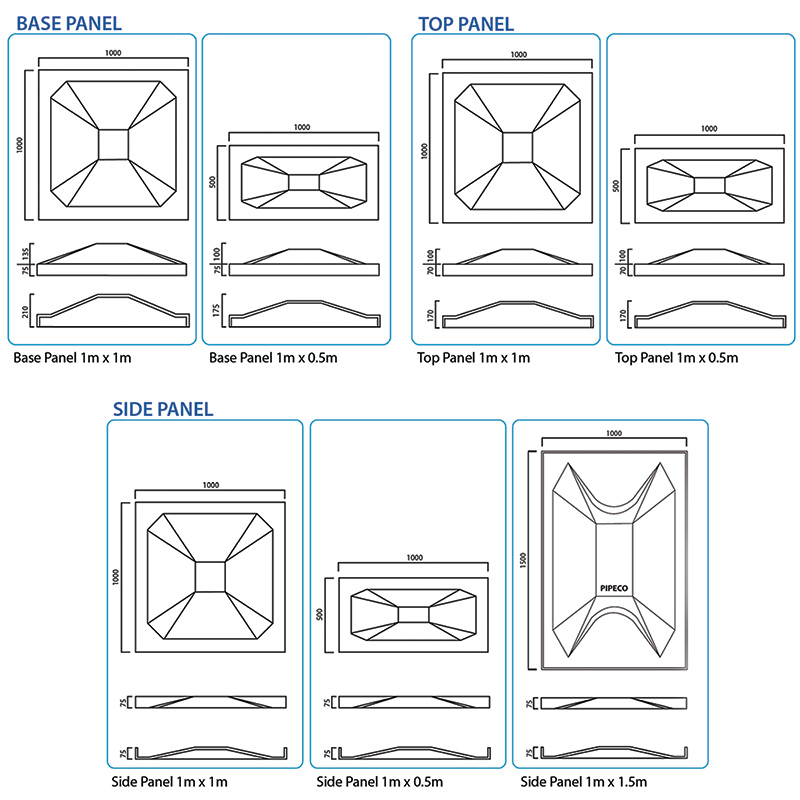

PIPECO GRP sectional water tank is constructed with bottom, side and top panels, completes with external and internal structural reinforcement and necessary tank accessories to facilitate water storage.
| Main Components | External Structural Support | Internal Structural Support | Tank Accessories |
|---|---|---|---|
| Top Panel | Body Angle | Pole | Access Manhole |
| Side Panel | Corner Angle | Pole Support | Air Vent |
| Bottom Panel | – | Tie Rod | Water Level Indicator |
| Drain/Pit Panel | Flat Bar | Roof Support | Internal Ladder |
| Stay Plate | In Corner Bracket | External Ladder |

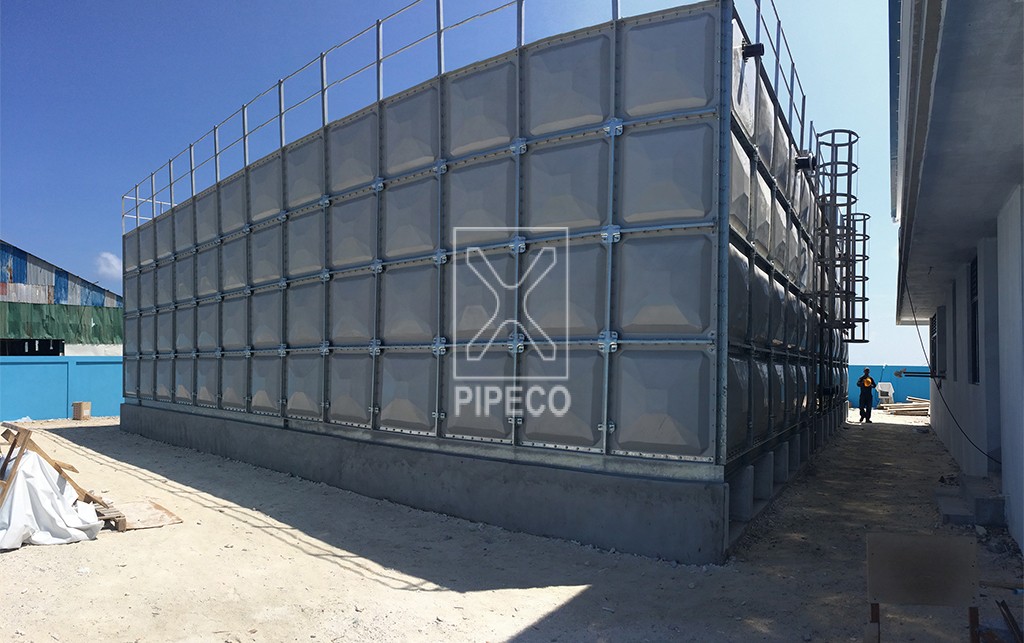

Overview of External Structural Support for GRP Sectional Water Tank
| Main Components | Internal Structural Support | External Structural Support | Tank Accessories |
|---|---|---|---|
| Top Panel | Pole | Flat Bar | Access Manhole |
| Side Panel | Pole Support | Body Angle | Internal Ladder |
| Bottom Panel | Roof Support | – | External Ladder |
| Drain/Pit Panel | In Corner Bracket | C-Channel | Air Vent |
| Vertical I Beam | Tube Level Indicator | ||
| Roof Flat Bar | |||
| Side I Beam Support Bracket | |||
| External Bracing Support |
